M270HVN02.0

EMAIL

M270HVN02.0

ITEMS

SPECIFICATIONS

Screen Diagonal

685.65(27.0”)

Active Area

597.6 (H) x 336.15 (V)

Pixels H x V

1920(x3) x 1080

Pixel Pitch

311.25 (per one triad) ×311.25

Pixel Arrangement

R.G.B. Vertical island

Display Mode

VA Mode, Normally Black

White Luminance ( Center )

300 cd/m2 (Typ.)

Contrast Ratio

3000 (Typ.)

Optical Response Time

12ms (Typ., on/off)

Nominal Input Voltage VDD

5 V (Typ)

Power Consumption

(VDD line + LED line)

19.53 watt

VDD line : PDD (typ), All white pattern at 60Hz =

4.65 W

LED line : PBLU (typ) = 14.88 W(@80mA)

Weight

2180

Physical Size

613.6(H)x356.85(V)x10.0(D) Typ.

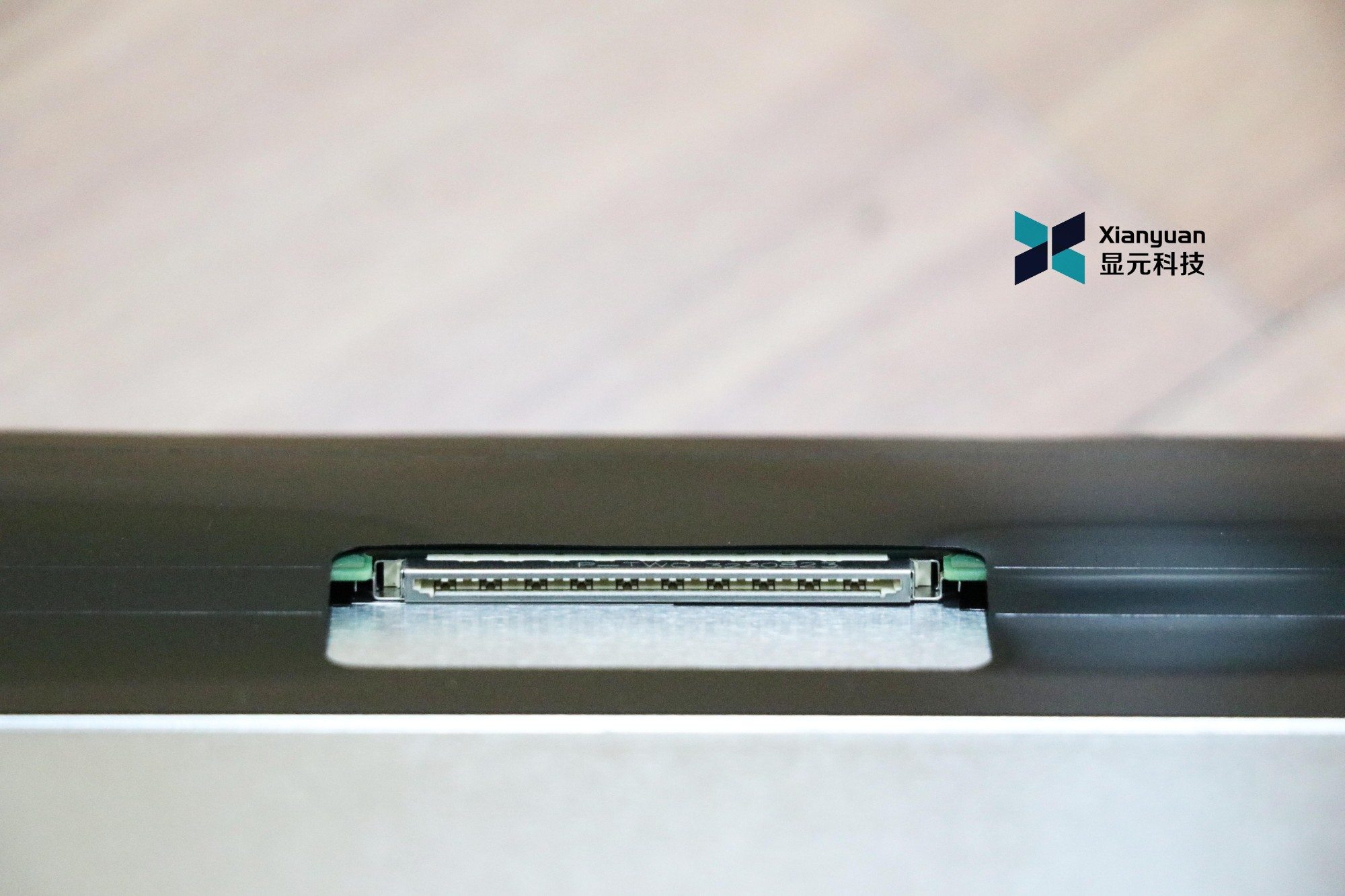

Electrical Interface

Dual Channel LVDS

Support Color

16.7M colors (RGB 8-bit)

Surface Treatment

Anti-Glare 3H

Temperature Range Operating Storage (Shipping)

0 to +50

-20 to +60

RoHS Compliance

RoHS Compliance

TCO Compliance

TCO 7.0 Compliance
